How to Measure Under Your Sink Before Buying an Organizer
Before you compare under-sink organizers, measure the cabinet you actually have—not the space you imagine is behind the doors. Pipes, valves, hinges, frames, and the sink above can divide one cabinet into several different usable spaces.
A short measurement sketch makes those limits visible before you shop.
Quick Answer
Measure the cabinet opening, usable interior width, depth, and height. Then map the drain, P-trap, water supply lines, shutoff valves, and any disposal or other obstacle. Check hinges, cabinet frames, and the path a pull-out drawer would travel. Compare an organizer's current product-page dimensions with that sketch before buying.
Table of Contents
- Why under-sink measurements need extra care
- What to have ready
- Measure the cabinet opening
- Measure usable interior width
- Measure usable depth
- Measure usable height
- Map pipes, valves, and other obstacles
- Check hinges, doors, and pull-out clearance
- Make a measurement sketch
- Turn the sketch into a fit check
- Compare product-page dimensions
- Final checklist
- FAQ
- Related articles
Why Under-Sink Measurements Need Extra Care
An under-sink cabinet is rarely an empty rectangle. The drain and P-trap may occupy the center, supply lines and shutoff valves may project from a wall, and a garbage disposal can take up space in a kitchen cabinet. Hinges, a face frame, or a raised cabinet lip can also narrow the opening or affect how a pull-out organizer moves.
That means the overall cabinet width, depth, or height does not tell you how much clear space is available in every part of the cabinet. Measure the open areas around the obstacles, and note when the left and right sides differ.
What to Have Ready
- A tape measure
- Paper and a pen, or a notes app
- A flashlight if the cabinet is dark
Remove loose items so you can see the floor, side walls, back wall, and plumbing. Do not disconnect or move plumbing to take measurements. Record every measurement in the same unit, and note which edge you measured from.
1. Measure the Cabinet Opening
Measure the clear width of the doorway between the cabinet's inside edges. Check the narrowest point, including any face frame, center stile, hinge plate, or other projection. If the opening changes from top to bottom, measure at more than one height and record the smallest clear width.
This is the space an organizer must pass through during installation. An organizer may fit inside the cabinet but still be too wide to bring through the opening, especially if it arrives assembled. Check the product listing for assembled dimensions and any stated installation requirements rather than assuming.

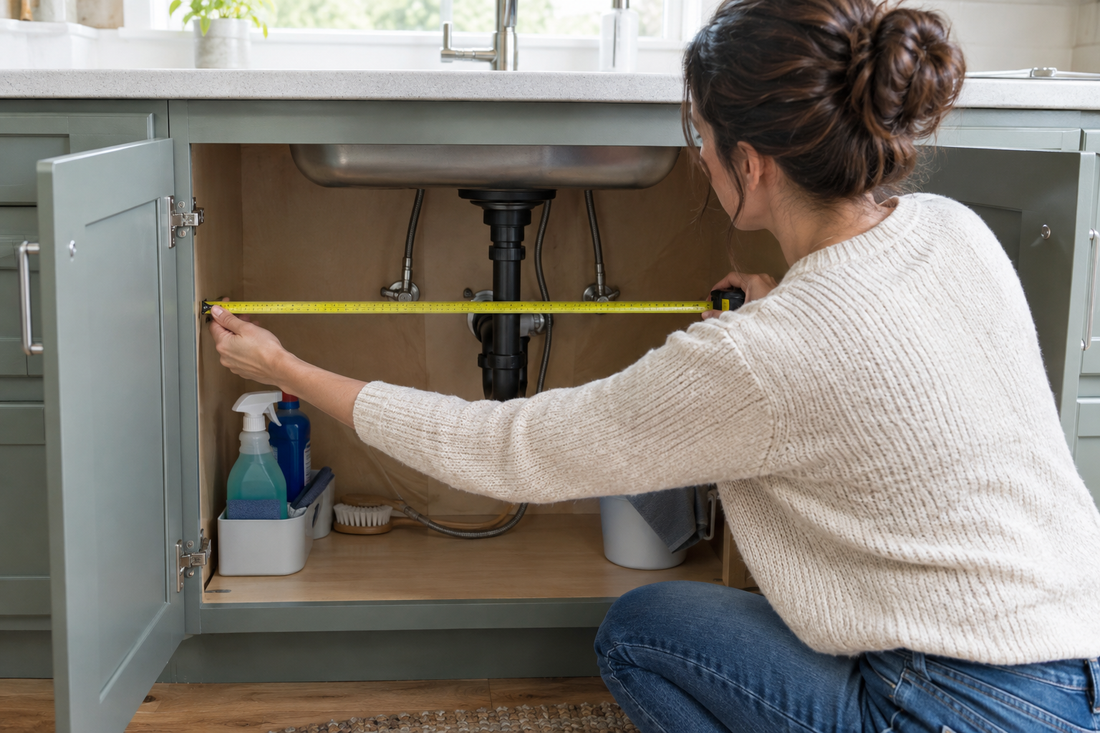

2. Measure Usable Interior Width
Measure from the inside of one cabinet wall to the other, then repeat near the front, around the plumbing, and toward the back. Shelves, framing, hinges, or pipes can make one section narrower than another.
If plumbing splits the cabinet, measure each clear area separately:
- the clear width to the left of the obstruction,
- the clear width to the right,
- the position and width of the obstruction between them.
Do not treat the total wall-to-wall measurement as a single uninterrupted storage space. A left-side organizer and a right-side organizer may need different widths.
3. Measure Usable Depth
Measure from the inside front edge of the cabinet to the back wall. Take separate measurements on the left, center, and right if pipes, valves, hoses, or a disposal reduce the available depth in only one area.
Note any front lip, shelf edge, or frame that an organizer would need to clear. For a pull-out design, also consider the space its drawer or basket needs to travel. A depth measurement alone does not confirm that a moving drawer has a clear path.
4. Measure Usable Height
Measure from the cabinet floor to the lowest obstruction above the area where storage could sit. Check more than one spot: the sink bowl may hang lower in one area, while the drain or P-trap may reduce height elsewhere.
Where plumbing divides the cabinet, record the usable height on each side separately. If you are considering multiple tiers, compare the height available in the exact area where each tier would sit. Do not use the cabinet's tallest point as the clearance for the whole cabinet.
5. Map Pipes, Valves, and Other Obstacles
Mark each fixed obstruction before deciding where an organizer could go. For the drain pipe, P-trap, water supply lines, shutoff valves, hoses, or other fittings, record their position from a consistent reference edge, such as the left wall and the cabinet floor. Note how far each one projects into the cabinet.
Drain pipe and P-trap
Sketch the drain route and the curved P-trap from the front and from above. Their positions can affect different heights, so note both the horizontal space they occupy and the height where they cross a possible storage area.
Water supply lines and valves
Mark hot and cold supply lines, shutoff valves, and any attached hoses. Keep routine access in mind when planning storage. Do not assume a line can be pushed aside to make an organizer fit.
Garbage disposal or other equipment
If a garbage disposal is present, measure around the installed unit and note where it is widest. Record other equipment or fixed obstacles the same way. Each cabinet has its own layout; use the actual cabinet rather than a generic diagram.
6. Check Hinges, Doors, Frames, and Pull-Out Clearance
Open the doors fully and note how far the hinges project into the cabinet. Check whether a face frame, shelf lip, center support, or raised floor edge narrows the opening or catches a drawer. If you are considering a pull-out organizer, trace the drawer's path from closed to open and check whether it would meet a pipe, hinge, or door.
Measure the clear opening and usable interior separately. Also check whether both doors can open far enough to reach the organizer. A product's outer dimensions do not, by themselves, establish that it will install or move freely in your cabinet.
7. Make a Simple Measurement Sketch
A quick sketch helps you compare the same parts of your cabinet with the measurements shown on a product page. Draw two simple views:
- Top view: show the cabinet floor, left and right walls, back wall, drain route, supply lines, valves, disposal footprint if present, and any clear zones.
- Front view: show the cabinet opening, sink underside, P-trap, supply lines, hinges, face frame, and height available in each zone.
Label the opening width, each clear interior width, depth, and usable height. Add arrows for measurements and mark which side they refer to. If the left and right spaces are different, draw and label them separately instead of averaging them.
A photo of the empty cabinet can help you interpret your sketch later. Keep it as a visual reference, not as a substitute for measurements.
8. Turn the Sketch Into a Fit Check
Before comparing organizer styles, make a short list of the maximum space available in each clear zone:
- maximum clear width and cabinet-opening width,
- usable depth in that zone,
- usable height below the sink or plumbing,
- obstacles that cannot be moved,
- door, hinge, and drawer travel clearance.
Then compare those measurements with the product's listed outside dimensions and configuration. If an item is expandable or adjustable, check the stated dimensions at the setting you would use. If it has pull-out drawers, consider the path they need when open. If a product page does not provide a measurement you need, do not guess from the product photo or title.
Compare Product-Page Dimensions Before Buying
Only after you have mapped the cabinet should you compare under-sink organizer options. For any current Nestifix organizer, verify the dimensions shown on its current product page and compare them with your sketch. Check width, depth, and height, along with the clearance needed around your P-trap, supply lines, hinges, and any drawer movement. The product name or number of tiers is not a fit guarantee.
Compare current listings such as Household Essentials Glidez 2-Tier Under-Sink Organizer, Chrome and madesmart 2-Tier Under-Sink Organizer with Pull-Out Drawers, Carbon. Check each current product page for exact dimensions and compare them with your sketch before buying; neither product name guarantees a fit for every cabinet.
Browse the Pull-Out & Under-Sink Organizers collection for more options. For a broader overview of organizer styles, see Under-Sink Storage Ideas: How to Choose the Right Organizer for Your Cabinet. Keep your measurements beside the product details so you can compare the actual dimensions rather than relying on a general description.
Final Measurement Checklist
- Cabinet opening width at its narrowest point
- Usable interior width, measured in more than one place
- Left and right clear zones measured separately where needed
- Usable depth at the front, center, and back as needed
- Usable height below the sink and around plumbing
- Drain, P-trap, supply line, and valve positions
- Garbage disposal or other obstacle footprint, if present
- Hinge, door, face-frame, and cabinet-lip clearance
- Clear path for any pull-out drawer or basket
- A labeled top-view and front-view sketch
FAQ
Should I measure the cabinet opening or the inside?
Measure both. The opening determines what can pass through the doorway, while the interior measurements show the usable space around walls, plumbing, and other obstacles.
Where should I measure around the P-trap?
Record where the P-trap sits from the left or right wall and from the cabinet floor, then note how far it projects into the cabinet. If the pipe divides the cabinet, measure the clear zones on both sides separately.
How do I measure an under-sink cabinet with a garbage disposal?
Measure around the disposal in its installed position. Note its widest points and the space remaining beside and below it. Do not assume a standard disposal size or move the equipment for the measurement.
How much clearance does a pull-out organizer need?
Check the product's listed dimensions and any stated drawer or rail clearance, then compare them with the opening, hinges, doors, and obstacles in your cabinet. If the listing does not specify a clearance you need, confirm it before buying.
What if one side of the cabinet is narrower?
Record the left and right spaces separately. Compare each side with the organizer dimensions instead of using one averaged width for the whole cabinet.
